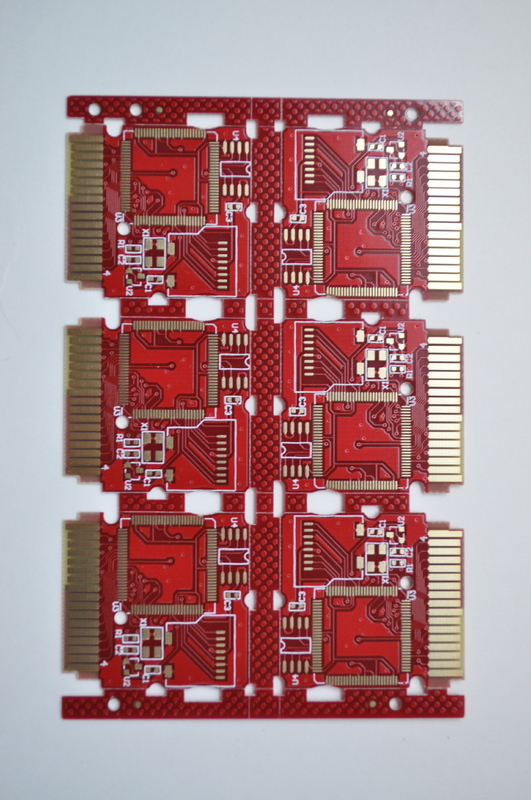

Advanced Two-Sided Circuit Board with Special Requirement Halogen Free and ±10% Impedance Control

Product Description:

A Double-Sided PCB, also known as a Dual-Sided PCB, is a type of circuit board that has copper traces and pads on both sides of the board. This allows for a higher density of components to be mounted on the board, making it an ideal choice for more complex electronic designs.

Our Double-Sided PCB product offers a total of 2 layers, providing the flexibility and space needed for intricate circuitry. With a board thickness of 1.6mm, it strikes the right balance between durability and compactness.

One of the special requirements that can be met with our Double-Sided PCB is Halogen Free material, ensuring a more environmentally friendly product. Additionally, impedance control can be incorporated to maintain signal integrity and prevent interference in high-frequency applications.

For surface finishing options, we offer a variety of choices including HASL (Hot Air Solder Leveling), OSP (Organic Solderability Preservative), ENIG (Electroless Nickel Immersion Gold), Immersion Gold, and lead-free finishes. These finishes provide different benefits such as improved solderability, corrosion resistance, and overall reliability.

The finished copper thickness of our Double-Sided PCB is 35um, which strikes a good balance between conductivity and flexibility. This ensures that the traces can carry the necessary current without sacrificing the overall flexibility of the board.

Features:

• Product Name: Double Sided PCB
• Min. Hole To Copper: 0.2mm
• Number Of Layers: 2
• Surface Finishing: HASL, OSP, ENIG, Immersion Gold, lead Free
• Finished Copper: 35um
• Special Tech: Impedance Control; ±10%

Technical Parameters:

Applications:

An extra long double-sided PCB with green solder resist color, 5 mil conductor space, and standard special technology is a versatile product suitable for a wide range of application occasions and scenarios.

One common application scenario for this double-sided circuit board is in the electronics industry, where it can be used in various electronic devices such as smartphones, tablets, and computers. The high-quality construction of the double-plated PCB ensures reliable performance and durability in these devices.

Another key application area for this product is in the automotive industry, where the double-sided PCB can be used in vehicle electronics, control systems, and entertainment systems. The green solder resist color provides a visually appealing finish that is ideal for automotive applications.

Furthermore, this double-sided PCB is well-suited for industrial automation and control systems due to its 5 mil conductor space, which allows for precise and efficient signal transmission. The 1oz copper construction ensures excellent conductivity and signal integrity in demanding industrial environments.

Moreover, the availability of PCB design and assembly services as part of the product offering makes it a convenient choice for manufacturers looking for a comprehensive solution for their electronic products. Whether it's a prototype development or a large-scale production run, the double-sided PCB with standard special technology can meet the diverse needs of different customers.

In conclusion, the extra long double-sided PCB with green solder resist color, 5 mil conductor space, and standard special technology is a versatile and reliable product that finds application in various industries and scenarios, making it an essential component for modern electronic devices and systems.

Customization:

Product Customization Services for 1.2m Double-Sided PCB:

Board Thickness: 1.6mm

Copper: 1oz

Finished Copper: 35um

Min. Hole To Copper: 0.2mm

Special Tech: Impedance Control; ±10%
